REPRODUCTION PARTS - NOT FOR FLIGHT USE              See further down for ORIGINAL Instruments and Switches



Reproduction Spitfire Mk9 Main Instrument Panel.

Made in 3mm Aluminium.

PRICE: £125

Reproduction Blind Flying Panel (Second Pattern).

Made in 3mm Aluminium.


See Blind Flying Panels and Fixings page

Reproduction Blind Flying Panel (First Pattern).

Made in 3mm Aluminium

This is the early pattern BFP used in the Battle of Britain.


See Blind Flying Panel and Fixings page


Reproduction Blind Flying Panel mounting lug.


See Blind Flying Panel and Fixings Page

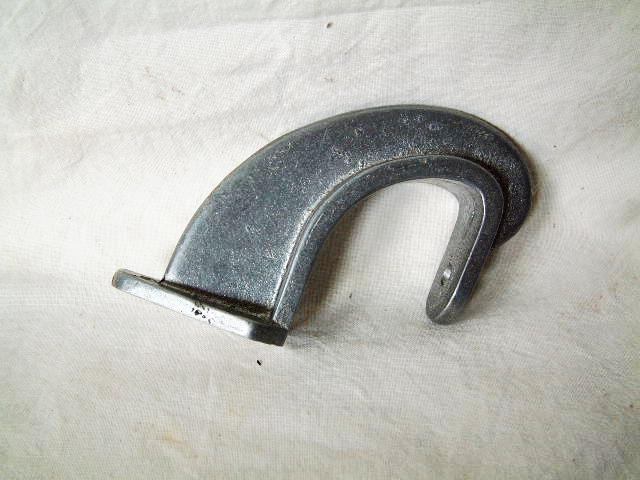

Reproduction Blind Fling Panel Mounting (Upper).

Cast in Aluminium.

PRICE: £50

Reproduction Blind Flying Panel Mountings (Lower).

Cast in Aluminium.

SOLD OUT

Original Sprung Mounts for the Blind Flying Panel.


SOLD OUT -  but reproduction sprung mounts now available.

See Blind Flying Panel and Fixings Page







ORIGINAL Blind Flying Panel Instruments

Air Speed Indicator Mk9F* - Ex SPITFIRE LF16 TE204

This ASI was removed from Spitfire TE204 during spares recovery prior to scrapping in May 1956.

SOLD

Air Speed Indicator 400 MPH

As used in the Battle of Britain.


SOLD OUT - More wanted

Air Speed Indicator 480 MPH

As used in the Mark 9 onwards.



SOLD OUT - More wanted!

Early Artificial Horizon (Pre-1941)


SOLD OUT - More wanted

Artificial Horizon Mk1B 6A/1519.

Used throughout WW2.


See Original Blind Flying InstrumentsPanel Page

First Pattern Rate of Climb Indicator 6A/942


SOLD OUT - More wanted

Second Pattern Rate of Climb Indicator 6A/942


PRICE: £75


Cabin Altimeter Mk12D 6A/1502

This was used in the high altitude Photo-Reconnaissance versions of the Spitfire which had pressure cabins.


Price: SOLD OUT - More Wanted

Classic Mark 14 Altimeter 6A/685.


SOLD OUT -  More wanted!

Single Pointer Altimeter Mk13 6A/437

As fitted to the earlyhigh flying Photo Reconnaisance Spitfires.


SOLD OUT - More wanted


Early Direction Indicator Mk1A 6A/602.


PRICE: £110


Direction Indicator Mk1A 6A/1298.



PRICE: £90


Turn & Slip Indicator Mk1B 6A/675.


SOLD OUT - More wanted


Turn & Slip Indicator Mk1B 6A/1302.


See Original Blind Flying Panel Instruments Page

OTHER ORIGINAL INSTRUMENTS


Oil Temperature Gauge Mk1A dated 1945

With capillary but minus the sender

SOLD OUT - More Wanted

Clock Mk3 Dated 1936 6A/676

Runs well.

SOLD OUT - More Wanted

Oxygen Regulator Mk8B 6D/476 dated 1942

Very Rare now.

SOLD - More wanted


Brake Pressure Gauge AHO4040

Genuine Spitfire Brake Pressure Gauge. Very rare.


SOLD OUT - More wanted


ENGINE SPEED INDICATOR (RPM) 6A/1151

This is for later aircraft such as the Mk9.


PRICE: £150


Gun Sight Mk2 with early Sighting Head - 8B/2361

Oval screen, but the screen is probably a modern reproduction.


 SOLD


Gun Sight Mk2 8B/2666

Complete with box.


SOLD OUT - More Wanted



Early +16 and later +24 Boost Gauges

See Main Panel Flight Instruments page


Oil Temperature Gauge  6A/1340

This is the 12 volt version suitable for the Spitfire.


SOLD OUT - More Wanted


Voltmeter 5U/1636 or 5A/1636


PRICE: £25

Fuel Pressure Gauge Mk8A 6A/512 Dated 1940

Rare 1940 gauge for Spitfire or Hurricane. Complete with 10' capillary.


SOLD OUT - More Wanted


Oil Pressure Gauge 6A/570

This has a long capillary so is probably from a bomber, but the instrument itself is the same as that used on the Spitfire, which only had a 10' capillary.


PRICE: £125




Electrical Components


Ignition Booster Coil - 37A/1815


See Electrical Components page..


Pneumatic Valve Type AR5/450/2  27/VB/3247

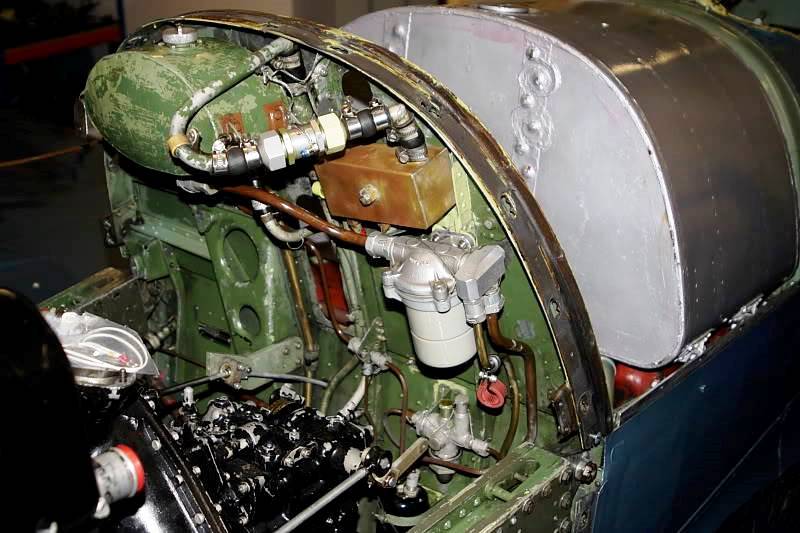

Undercarriage valve located on the firewall (See photo below).



PRICE: £60


Magneto Switch 5C/548

The classic Spitfire magneto switch in unused condition.

These were also used in the Hurricane.


See 5C Electrical Components


Fuel Tank Selection Button - Scarce

This is the button that fitsbeside the fuel gauge on the main instrument panel.


SOLD OUT - More Wanted


Starter Button, Cover and Gasket - 5C/898 and 5C/1267


See 5C Electrical Components Page


G45 Gun Camera - 12v Version

SOLD OUT - More wanted


Tail Light Assembly less Glass


See 5C Electrical Components Page
