REPRODUCTION PARTS - NOT FOR FLIGHT USE



Reproduction Lancaster Control Yoke

Cast in aluminium and complete with moving brake lever, push buttons, splined center and cap.


PRICE:£600



Here's a real one for comparison, complete with head box. Note the absence of the second button and the presence of an additional  lug on the right hand arm. These are modifications incorporated for the Dams Raid.

Reproduction Lancaster Main Instrument Panel.

Made in 3mm Aluminium from an original AVRO jig

and laser copied.

PRICE: £400

Item includes side pieces shown below

Reproduction Blind Flying Panel

Made in 3mm Aluminium.


See Blind Flying Panels and Fixings

Mounting Brackets for Blind Flying Panel.

These are fitted to the main instrument panel.

PRICE: £50 per set of three

Mounting Brackets for Blind Flying Panel.

These are fitted to the blind flying panel.




PRICE: £75 for a set of three



Original Sprung Mounts for the Blind Flying Panel


SOLD OUT - More wanted

Shrouds for Feathering Buttons.

Made in Aluminium and anodised in black.

SOLD OUT

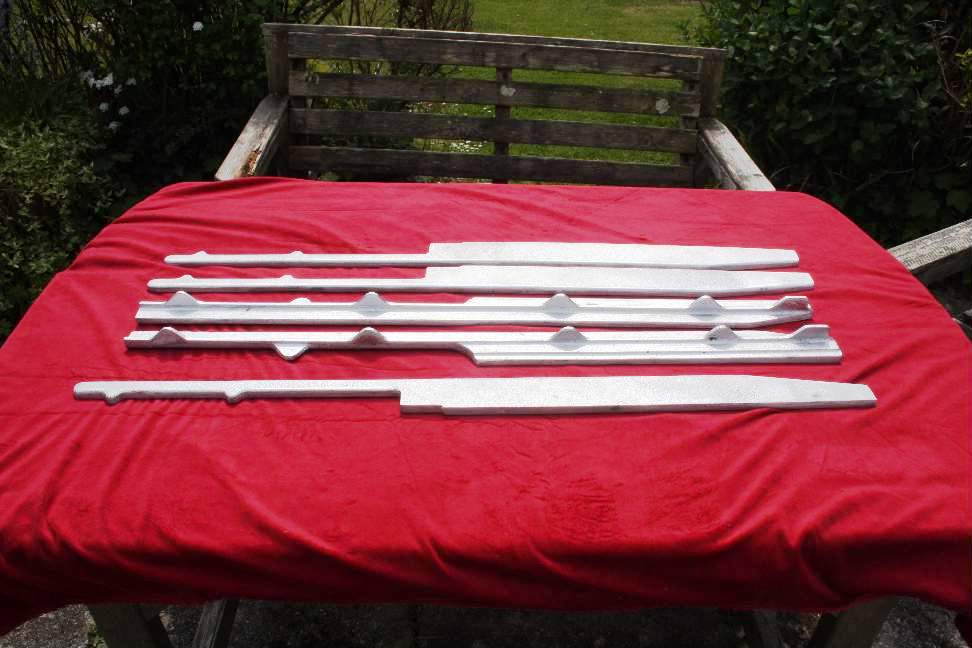

Cockpit Window Rails.

These fit on the cockpit side rails and canopy and provide the tracks in which the opening side windows slide.

PRICE: £400 per set of four rails

ORIGINAL Blind Flying Panel Instruments


Air Speed Indicator 400 MPH

This is the correct wartime ASI as specified on the AVRO Bill of Materials for the Lancaster. ASIs in knots were only used in Coastal Command aircraft until after the war, when knots were accepted by the RAF.


SOLD OUT - More Wanted


Artificial Horizon Mk1B 6A/1519


See Blind Flying Panel Instruments page


Rate of Climb Indicator Mk1- 6A/942


SOLD OUT - More wanted


Altimeter Mk14 6A/685


SOLD OUT - More wanted.


Direction Indicator Mk1A  6A/1298


See Original Blind Flying Instruments Page


Turn & Slip Indicator Mk1B 6A/1302


See Original Blind Flying Panel Instrument Page


Other Original Parts


Vacuum Change-Over Cock


This is fitted to the pilot's instrument panel on the left hand side.


SOLD - More Wanted





Propeller Feathering Switch 5C/4854

Available singly or in pairs or fours. New, old stock still packed in cardboard cartons.


See 5C Electrical Components page.



 Regulatory Valve 137J/3302 Packard Merlin

This valve was used on the Packard built Rolls Royce Merlin engines of the type that were fitted to the Lancaster.This example is dated September 1943.

They may also have been used on Canadian built Mosquitos and Hurricanes and also on the P-51 Mustang.

PRICE: £50


Boost Gauge Mk3G 6A/789


Used on Mk1 Lancasters. Later Mks used the +24lb gauge.


See Main Panel Flight Instruments page.


Boost Gauge Mk3M 6A/1581


Used on most Lancasters from 1943 onwards.


See Main Panel Flight Instruments page.



Dimmer Switch Type R - 5C/2526


See 5C Electrical Components Page


Engine Starter Button and Cover - 5C/898 or 5C/540

Also available with unlettered flap suitable for the fire extinguisher buttons.


See 5C Electrical Components Page


Paper Gasket for Engine Start and Fire Extinguisher Buttons


See 5C/electrical Components Page


Other Items


Radio Panel Type 192


Sold - More Wanted


Navigator's Lamp 5C/1079 be Herbert Terryy


Sold - More Wanted




Twin Magneto Switch and Guard - 5C/1540



SOLD OUT - More Wanted

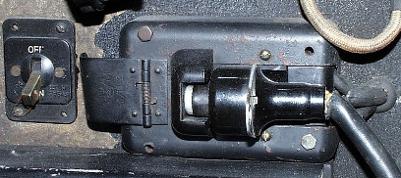

Bomb Release Button, Interlock Ring, Plug and Cable - 5D/634


This is the classic bomb release as fitted in the Bomb Aimer's Station.


PRICE: £35





Morse Key Type F - 10F/7741

This is the classic morse key fitted in the Wireless Operator's Station in the Lancaster. It is in used condition


SOLD OUT - More Wanted


Distant Reading Compass - Pilot's Repeater - 6B/742

Fits in a separate panel above the main instrument board.


PRICE: £40



Oil Pressure Gauge Mk12E - 6A/570

Complete with capillary and sender. Four of these are fitted at the Flight Engineer's station in the Lancaster.


PRICE: £95


Fuel Contents Gauge 6A/1215

Bomb bay overload tank. This gauge is fitted at the Flight Engineer's station.


PRICE: £25


Turret Position Indicator - 6A/1804



SOLD OUT


Suction Gauge Mk.1 - 6A/757


PRICE: £50


Propeller Feathering Switch 5C/4854

Four of these are mounted on the main instrument board and protected from accidental operation by shrouds.


PRICE EACH: £25 - Shroud NOT included but available separately(see above)




Undercarriage Interlock Switch 5C/1974

Fits on the main instrument panel next to the magneto switches and used to prevent accidental retraction of the landing gear when the aircraft is on the ground.


SOLD OUT - More wanted


Supercharger Switch

Four of these are fitted to the main instrument panel on the upper right-hand side.


PRICE: £3.00 Each, Set of 4 for £10.00
